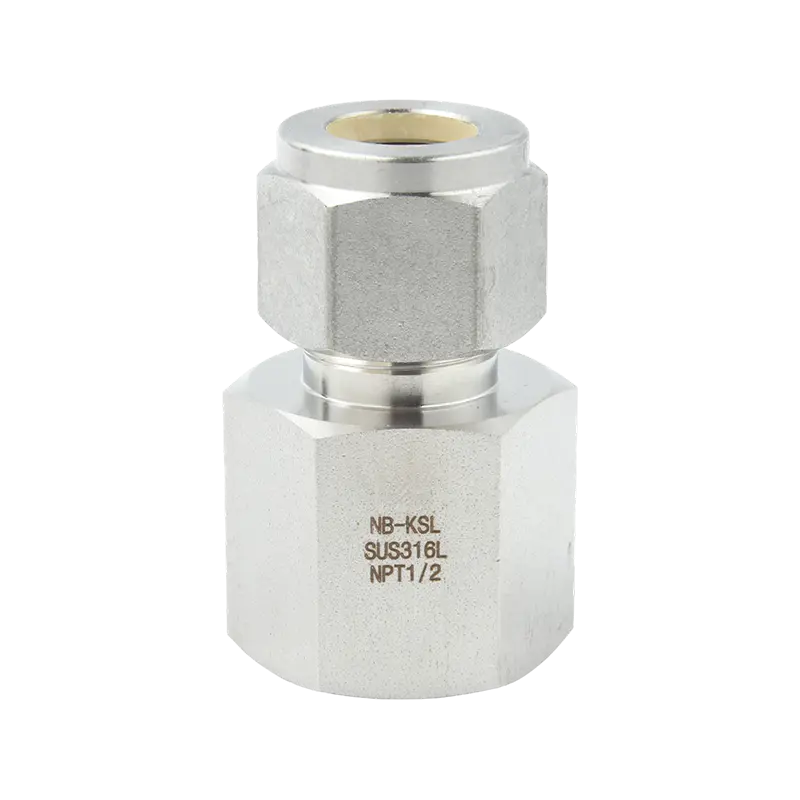

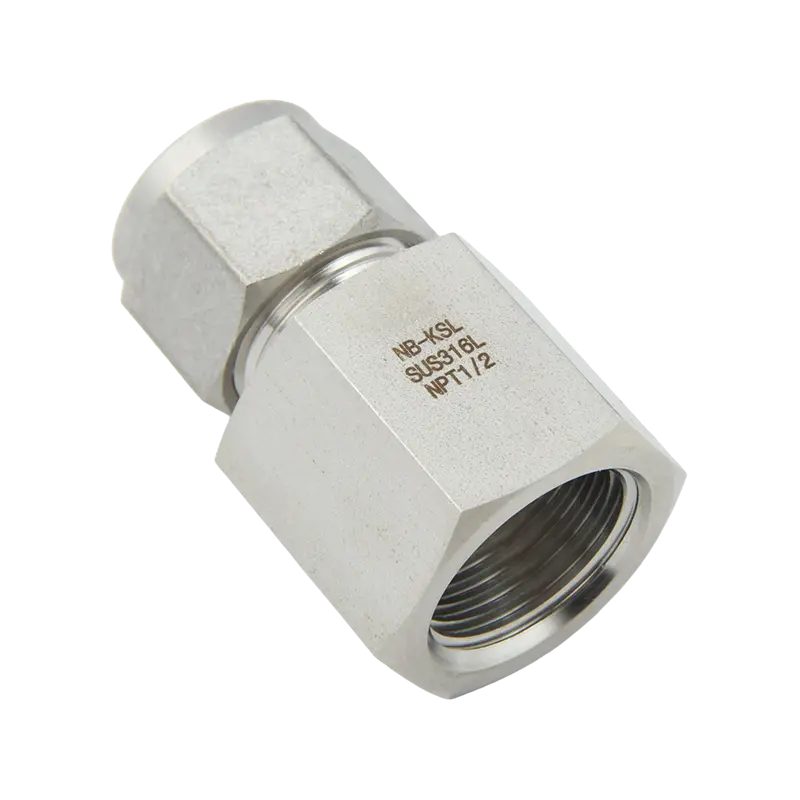

موصل خيط داخلي مناسب للضغط من الفولاذ المقاوم للصدأ 316L

رقم الكتالوج

أنبوب T

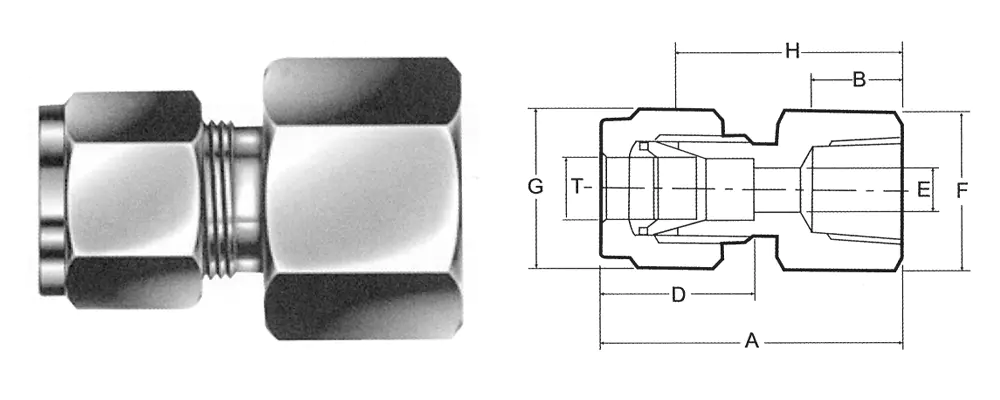

PT-NPT حجم الأنابيب الذكور

A

B

D

E

F

G

H

FC-4-1

4

1/8

30.6

10

13.7

3

14

12

23.9

FC-4-2

4

1/4

34.6

15

13.7

3

19

12

27.9

FC-6-1

6

1/8

31.7

10

15.8

4.8

14

14

23.9

FC-6-2

6

1/4

36.2

15

15.8

4.8

19

14

28.4

FC-6-3

6

3/8

38

15

15.8

4.8

22

14

30.2

FC-6-4

6

1/2

42.9

20

15.8

4.8

27

14

35.1

FC-8-1

8

1/8

32.3

10

16.7

6.4

14

16

24.6

FC-8-2

8

1/4

37.2

15

16.7

6.4

19

16

29.5

FC-8-3

8

3/8

38.7

15

16.7

6.4

22

16

31

FC-8-4

8

1/2

43.5

20

16.7

6.4

27

16

35.8

FC-10-1

10

1/8

34.8

10

19.6

7.9

17

19

27.2

FC-10-2

10

1/4

37.8

15

19.6

7.9

19

19

30.2

FC-10-3

10

3/8

39.4

15

19.6

7.9

22

19

31.8

FC-10-4

10

1/2

44.2

20

19.6

7.9

27

19

36.6

FC-12-1

12

1/8

38

10

23.8

8.6

22

22

27.2

FC-12-2

12

1/4

41

15

23.8

9.5

22

22

30.2

FC-12-3

12

3/8

42.6

15

23.8

9.5

22

22

31.8

FC-12-4

12

1/2

47.4

20

23.8

9.5

27

22

36.6

FC-12-6

12

3/4

48.9

19

23.8

9.5

35

22

38.1

FC-12-8

12

1"

52

22

23.8

9.5

41

22

41.2

FC-14-3

14

3/8

42.6

15

24.8

11.1

24

27

31.8

FC-14-4

14

1/2

47.4

20

24.8

11.1

27

27

36.6

FC-14-6

14

3/4

48.9

20

24.8

11.1

35

27

38.1

FC-15-3

15

3/8

42.2

15

24.4

11.9

24

27

31.8

FC-15-4

15

1/2

47

20

24.4

11.9

27

27

36.6

FC-15-6

15

3/4

48.5

20

24.4

11.9

35

27

38.1

FC-16-3

16

3/8

42.2

15

24.4

12.7

24

27

31.8

FC-16-4

16

1/2

47.2

20

24.4

12.7

27

27

36.8

FC-16-6

16

3/4

48.5

20

24.4

12.7

35

27

38.1

FC-18-3

18

3/8

42.6

15

24.8

15.1

27

30

31.8

FC-18-4

18

1/2

47.6

20

24.8

15.1

27

30

36.8

FC-18-6

18

3/4

48.9

20

24.8

15.1

35

30

38.1

FC-20-4

20

1/2

48.3

20

25.5

15.9

30

32

37.8

FC-20-6

20

3/4

50.1

20

25.5

15.9

35

32

39.6

FC-22-4

22

12

48.3

20

25.5

18.3

30

32

37.8

FC-22-6

22

3/4

50.1

20

25.5

18.3

35

32

39.6

FC-22-8

22

1"

58.3

22

31.7

18.3

41

32

47.8

FC-25-6

25

3/4

53.8

20

31.7

21.8

35

38

41.1

FC-25-8

25

1"

62.7

22

31.7

21.8

41

38

50

FC-01-1

1/8

1/8

30.4

10

14

2.4

14

12

22.9

FC-01-2

1/8

1/4

34.5

15

14

2.4

14

12

27

FC-02-1

1/4

1/8

31.7

10

15.8

4.8

14

14

23.9

FC-02-2

1/4

1/4

36.2

15

15.8

4.8

19

14

28.4

FC-02-3

1/4

3/8

38

15

15.8

4.8

22

14

30.2

FC-02-4

1/4

1/2

42.9

20

15.8

4.8

27

14

35.1

FC-03-1

3/8

1/8

33

10

19.6

7.1

16

17

25.4

FC-03-2

3/8

1/4

37.8

15

19.6

7.1

19

17

30.2

FC-03-3

3/8

3/8

39.4

15

19.6

7.9

22

17

31.8

FC-03-4

3/8

1/2

44.2

20

19.6

7.9

27

17

36.6

FC-03-6

3/8

3/4

45.7

19

19.6

7.1

35

17

38.1

FC-04-1

1/2

1/8

37.4

10

23.4

10.4

22

22

27.2

FC-04-2

1/2

1/4

40.4

15

23.4

10.4

22

22

30.2

FC-04-3

1/2

3/8

42

15

23.4

10.4

22

22

31.8

FC-04-4

1/2

1/2

46.8

20

23.4

10.4

27

22

36.6

FC-04-6

1/2

3/4

48.3

20

23.4

10.4

35

22

38.1

FC-04-8

1/2

1"

51.4

22

23.4

10.4

41

22

41.2

FC-05-3

5/8

3/8

42.2

15

24.4

12.7

24

27

31.8

FC-05-4

5/8

1/2

47

20

24.4

12.7

27

27

36.6

FC-05-6

5/8

3/4

48.5

20

24.4

12.7

35

27

38.1

FC-06-4

3/4

1/2

47

20

24.4

15.7

27

30

36.6

FC-06-6

3/4

3/4

48.5

20

24.4

15.7

35

30

38.1

FC-06-8

3/4

1"

51.6

22

24.4

15.7

41

30

41.2

FC-08-4

1"

1/2

53.8

20

31.7

18.5

35

38

41.1

FC-08-6

1"

3/4

53.8

20

31.7

22.4

35

38

41.1

FC-08-8

1"

1"

62.7

22

31.7

22.4

41

38

50
